Motion paths - Introduction

Previous pageReturn to chapter overviewNext page

Motion paths can be applied to image, text, video and particle objects but also to Flexi-Collages and live and object effects. Insert an image you want to animate with motion paths. Then click on the image in the Image list or Timeline. In Layout designer, select the icon for the motion path.

In the toolbar which is located at the top of the Layout designer, you will find at a glance all the tools which are useful when creating a motion path.

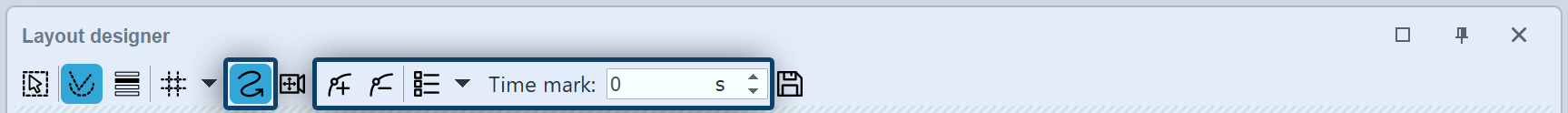

Icons in the layout designer

Icons in the layout designer

LABr_MovementPath

This is the icon which shifts the Layout designer into the motion path mode.

LABr_CameraPan

Via this symbol you can shift into the mode for panning and zooming.

LABr_AddMovementMark

With this switch, new movement markers can be added. The movement's course is determined based on these points.

LABr_DeleteMovementMark

To remove preexisting motion marks you must select them in the Layout designer and then you can remove them using this button.

LABr_Menu

This opens a further menu for the motion marks.

LABr_TimeMark_2_5

The chronological sequence of a path is determined by the time stamps. You can use these to determine how fast the process should be.

Btn_Save

Here you can save motion paths you have created so that they can easily be reused.  This function is only available in Video Vision.

In the chapterl Text animation motion paths are further discussed.
