Recovering files

<< Click to Display Table of Contents >>

Navigation:  Saving and recovering

Recovering files

 Previous pageReturn to chapter overviewNext page
Image can not be found

Image can not be found

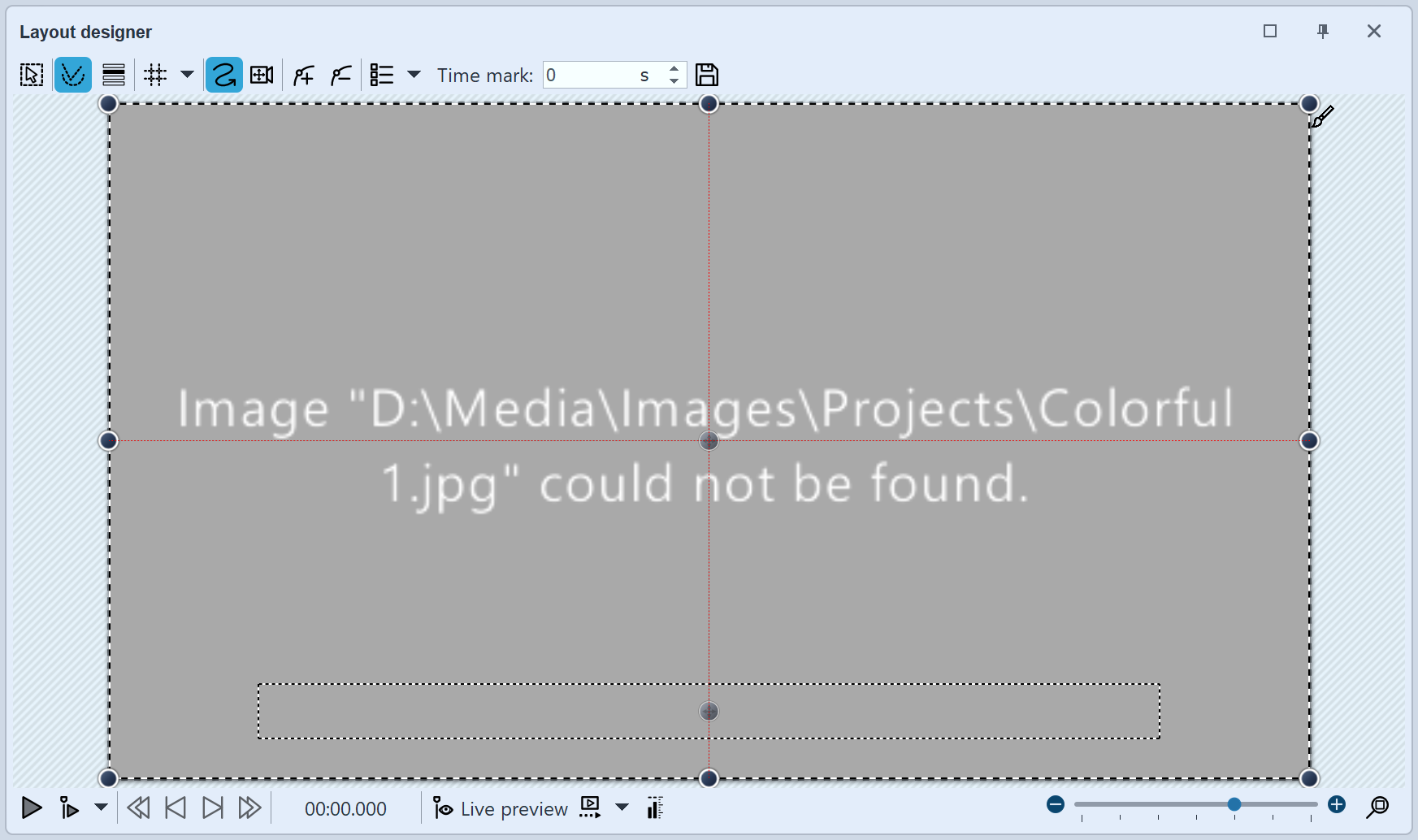

AquaSoft Stages only stores shortcuts to your images and to the music you use in the project . If you move, delete or rename your images or music, the AquaSoft Stages can  no longer retrieve them. You will then see the following display in the Layout designer:

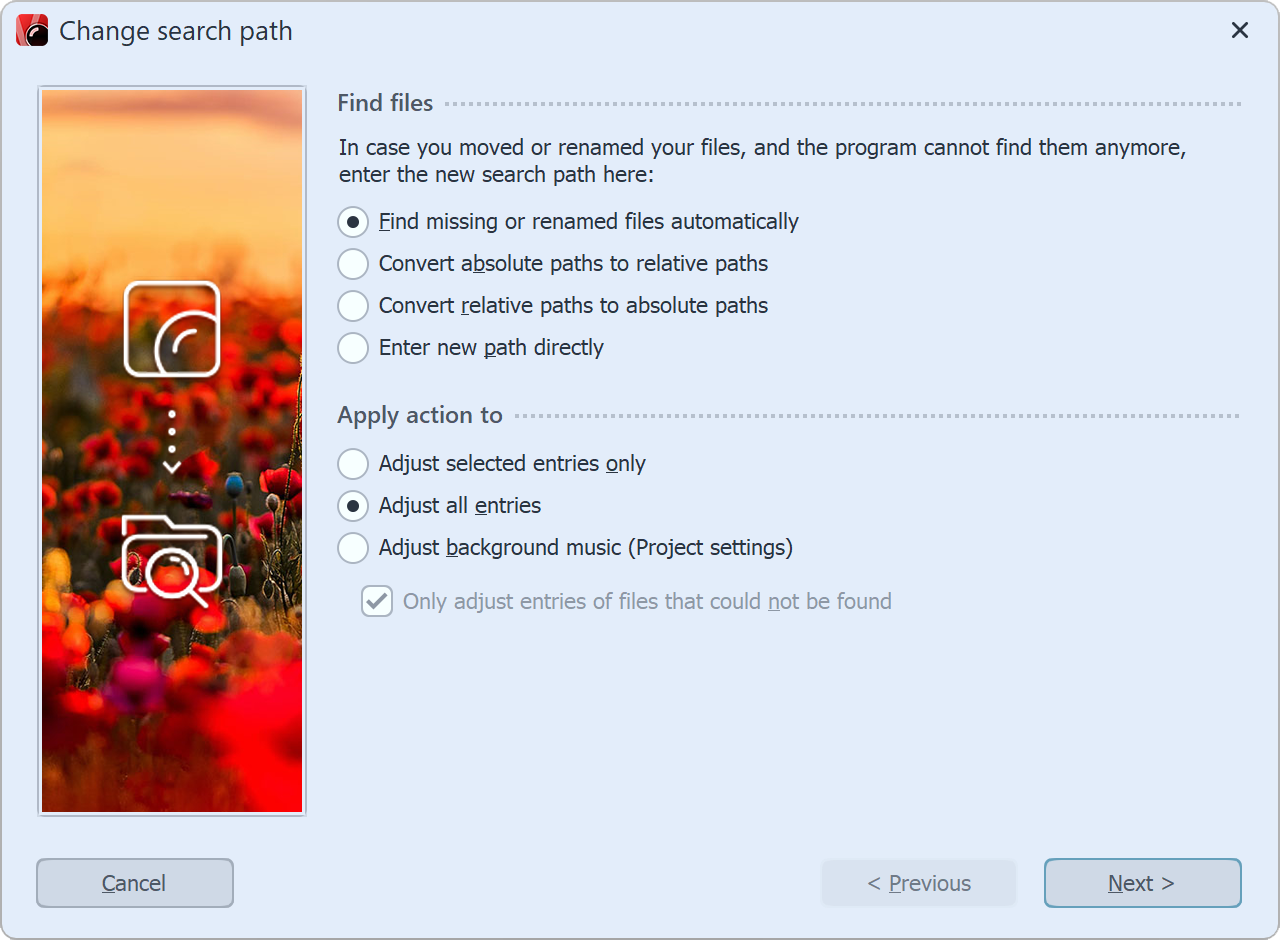

Dlg_SearchWizard1
Find images again

The Search Wizard cannot recover deleted images, but it can help you reinsert moved or renamed files into the project.

1 Call wizard

Open the Search Wizard via Wizards / Find files.

Under Find files, select the desired option.

Find missing or renamed files automatically

Select this option if you do not know where exactly on your computer the files are located or you have renamed or moved the files.

Convert absolute to relative paths / Convert relative to absolute paths

For relative paths, the position of the images is saved starting from the project's save file. For absolute paths, the full path is saved to your hard disk.

Enter new path directly

Select this option if you know the directory where the images are located. Attention: the file paths will then be directed to this directory. If you use multiple sources for your project, better use the Find missing or renamed files automatically option.

Then specify which entries are to be adjusted. After you have made all entries, click Next.

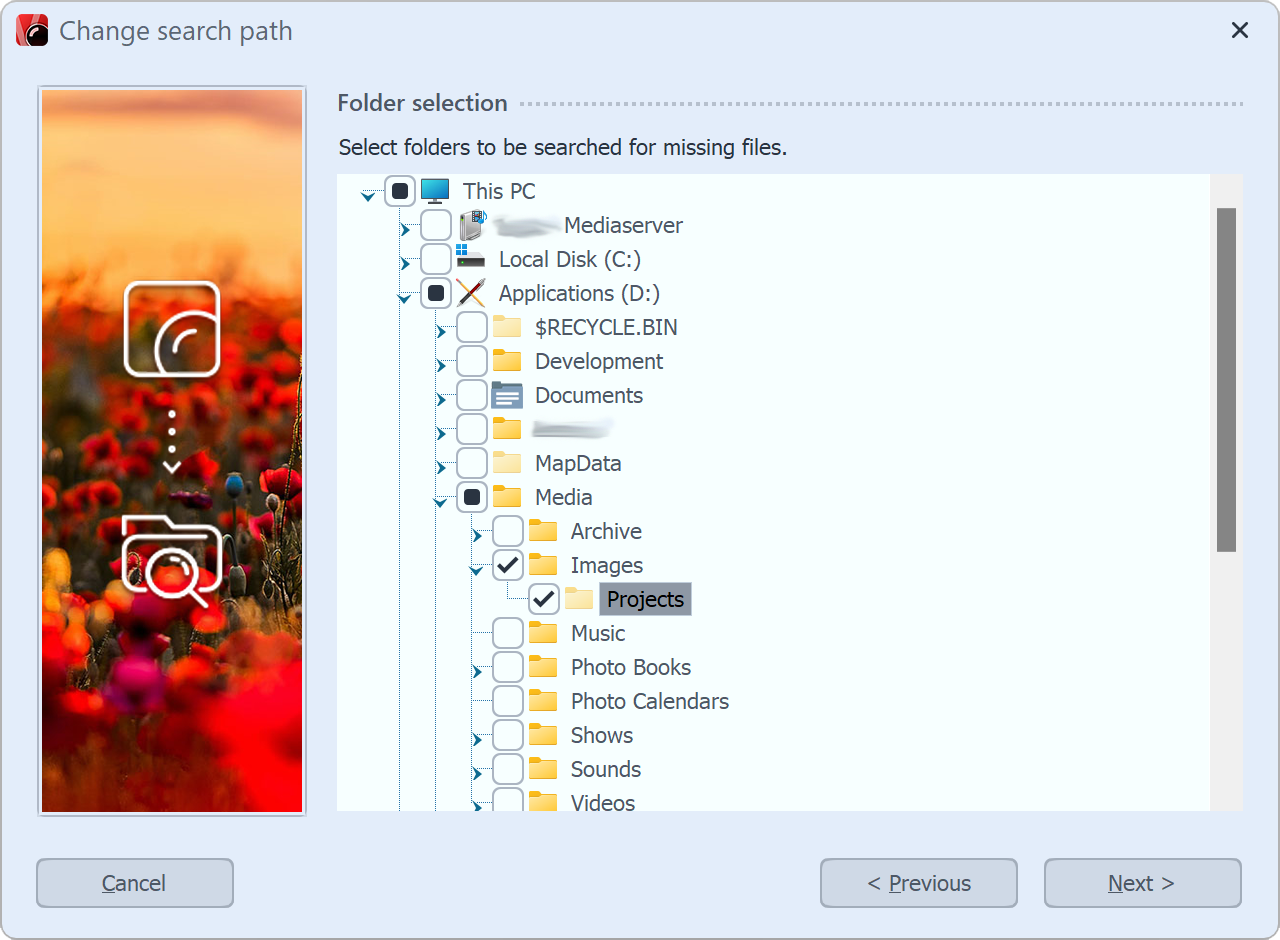

Dlg_SearchWizard_Folders
2 Narrow search

Select the locations to be searched here. The more locations are searched, the more time the search takes. When you have narrowed down the search, click Next.

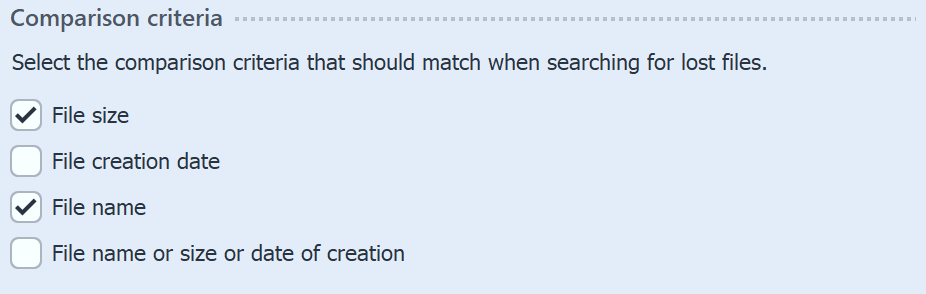

Dlg_SearchWizard_Criteria
3 Set comparison criteria

Here you decide which criteria will be used to perform the search.

After setting the comparison criteria, click Next.

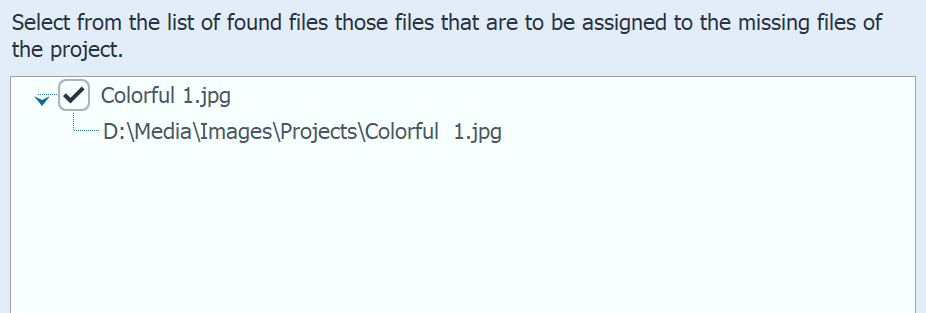

Dlg_SearchWizard_FoundFiles
4 Select found files

After a successful search, the found files will be displayed. Select which files to insert to replace the files that are not displayed. Click Finish to insert the files. Save your project afterwards so that the new paths are also present when you reopen the project.

symbol-info

Via Project / Check for errors you can finally check again whether all files are present. If there are still errors, a mouse click on the corresponding line in the error report will take you to the location where the file is missing.
